PopUpButton

A PopUpbutton displays a menu of mutually exclusive/inclusive options.

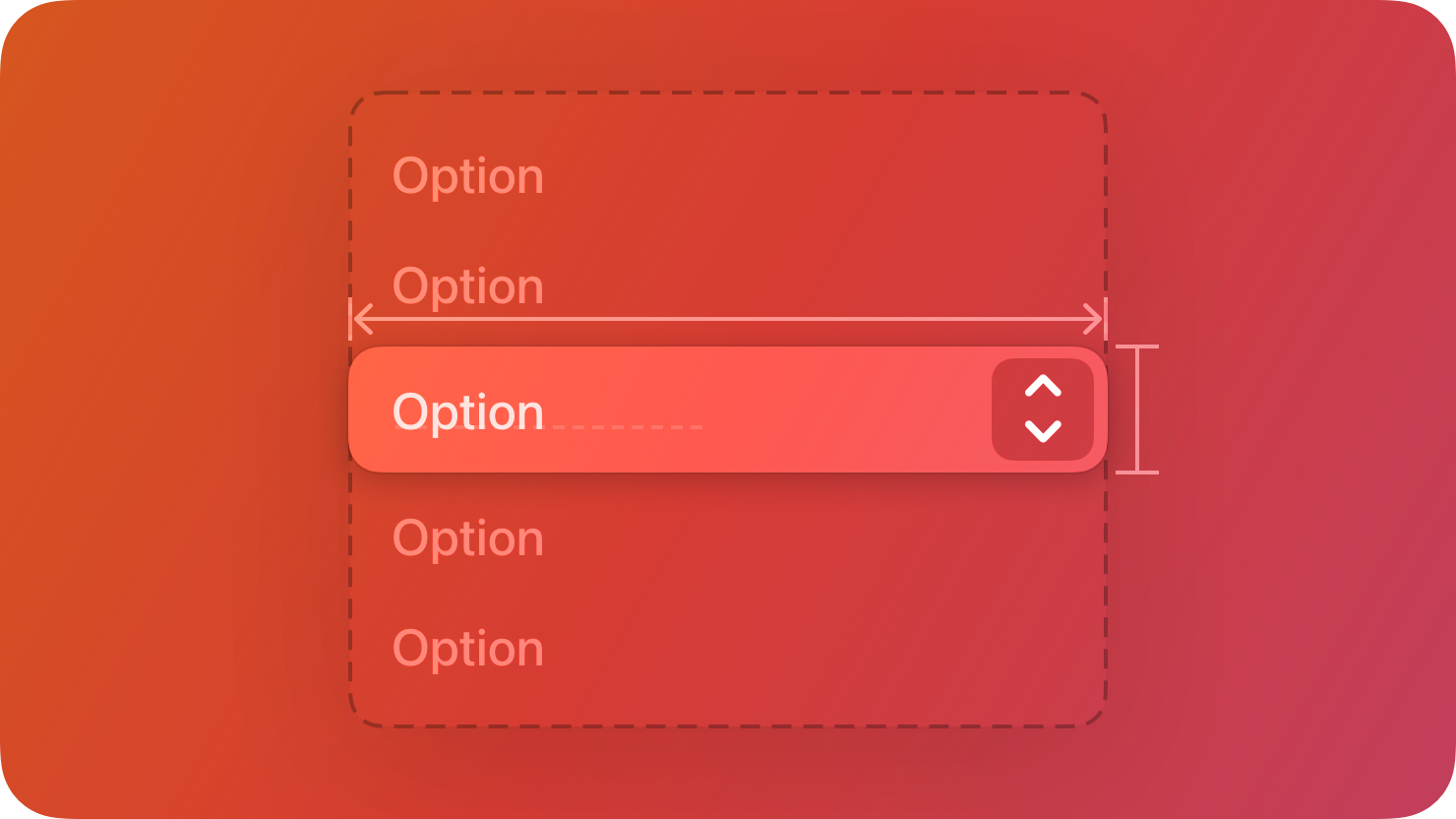

Component preview

Summary

Properties

Property Type Description
Options {[number]: string}? You can use this table to pre-define options. Note that doing it this way will not give you access to the option instances themselves.
Expanded boolean? Defines the state of the dropdown disclosure.
Maximum number? Maximum number of selectable options. Defaults to 1 (single-select).
Value number? or {number}? The selected index (single) or a table of selected indices when Maximum > 1.
Anchor DropdownMenuAnchor? Overrides where the menu opens.

View all inherited from BaseComponent

View all inherited from TextButton

Methods

Method Signature Description
Option (Name: string?) -> TextButton Can be used to seperately create options, use this if you want to access the option instances themselves. An example of use would be a dynamically updating playerlist.
Remove (Index: number?) -> nil Can be used to remove options from the pop-up menu, this automatically removes it from the options list as well.

View all inherited from TextButton

Events

Event Signature Description
ValueChanged ((self: PopUpButton, value: number or {number}) -> unknown)? A Callback function that is triggered when the Value property has been modified.

View all inherited from TextButton

Types

type DropdownMenuAnchorConfig = {
    Object: GuiObject?,
    Element: GuiObject?,
    Label: GuiObject?,
    Option: number?,
    Offset: Vector2?,
    XOffset: number?,
    YOffset: number?,
}

type DropdownMenuAnchor = GuiObject | DropdownMenuAnchorConfig

type PopUpButtonProperties = TextButton & {
    Options: { [number]: string }?,
    Expanded: boolean?,
    Anchor: DropdownMenuAnchor?,
    Maximum: number?,
    Value: (number | { number })?,
    ValueChanged: ((self: PopUpButton, value: number | { number }) -> unknown)?,
}

type PopUpButton = BaseComponent & Components & PopUpButtonProperties & {
    Option: (Name: string?) -> TextButton,
    Remove: (Index: number?) -> nil,
}

Function Signature

function(self, properties: PopUpButtonProperties?): PopUpButton

Example

local popUpButton = row:Right():PopUpButton({
    Options = {
        "Item One",
        "Item Two",
    },
    ValueChanged = function(self, value: number)
        print("Value changed:", self.Options[value])
    end,
})

print(popUpButton:IsA("TextButton")) --> true
print(popUpButton.ClassName) --> "TextButton"
print(popUpButton.Type) --> "PopUpButton"

local itemThree = popUpButton:Option("Item Three")
popUpButton.Value = 3 --> Value changed: "Item Three"

print(itemThree.ClassName) --> "TextButton"
popUpButton:Remove(3)

Multi-select Example

local multi = row:Right():PopUpButton({
    Options = {"One","Two","Three","Four"},
    Maximum = 3,
    ValueChanged = function(self, value)
        -- `value` is ALWAYS a table of indices when `Maximum > 1` even if only 1 value is selected.
        print("Selections:")
        for _, idx in ipairs(value or {}) do
            print(self.Options[idx])
        end
    end,
})

local five = multi:Option("Five")

multi.Value = {1, 3}
